TSKgel PWXL column


水溶性聚合物分析色谱柱 TSKgel PWXL

TSKgel PWXL 色谱柱由亲水性球形聚甲基丙烯酸酯颗粒填充,主要应用范围在于分析水溶性聚合物,如纤维素、丙烯酰胺、二醇、葡聚糖、聚乙烯醇和低聚糖等。典型样品及其适用淋洗液请详见TSKgel PW 页面中的表格。

1为所有PWXL色谱柱的校准曲线,图2则为PWXL色谱柱较之PW色谱柱的优点,即凭借PWXL色谱柱所用的较小粒度而实现的高分辨率。




Figure 1: Polyethylene glycol and oxide
calibration curves on TSKgel PWXL columns

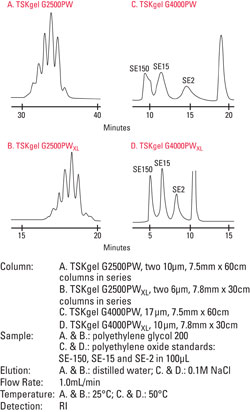

Figure 2: Faster analysis and higher resolution with TSKgel PWXL columns.







尽管蛋白质可在PWXL柱中进行分析,但空隙容积却远远小于SW型柱。图 3说明了PWXL对蛋白质样品的分离能力有限。



特制柱

TSKgel G-DNA-PW 可用于分析DNA片段。同样,TSKgel G-Oligo-PW 也是低聚糖分析的首选。混合型柱TSKgel GMPWXL,具有更宽的线性校准范围,适合于MW分布较宽的样品和不明分子量的样品。

TSKgel SuperOligoPW 柱的粒径更小,为3微米,在达到同样分离效果的条件下,可以比TSKgel G-Oligo-PW柱缩短一半的分析时间。


Figure 3: Protein Calibration curves for TSKgel PWXL

Base Material: hydroxylated polymethacylate
Particle Size (mean): 7 µm
Pore size (mean): < 20 nm
Calibration Range (polyethylene glycols and oxides):   < 3,000 Da
Max. % Organic: 20%
Shipping Solvent: water

P/N
Description
Particle size
Housingmaterial ID (mm) Length (cm)
0008020
TSKgel G2500PWXL 7 µm Stainless Steel 7.8 30
0008033
Guard Column for P/N 0008020
12 µm
Stainless Steel 6 4
0008035
TSKgel Top-Off for PWXL, 1g 10 µm


Base Material: hydroxylated polymethacylate
Particle Size (mean): 7 µm
Pore size (mean): 20 nm
Calibration Range (polyethylene glycols and oxides):   < 40,000 Da
Max. % Organic: 20%
Shipping Solvent: water

P/N
Description
Particle size
Housing material ID (mm) Length (cm)
0008021
TSKgel G3000PWXL
7 µm
Stainless Steel 7.8 30
0008033
Guard Column for P/N 0008021
12 µm
Stainless Steel 6 4
0008035
TSKgel Top-Off for PWXL, 1g
10 µm
Base Material: hydroxylated polymethacylate
Particle Size (mean): 10 µm
Pore size (mean): < 50 nm
Calibration Range (polyethylene glycols and oxides):   2,000 - 300,000 Da
Max. % Organic: 20%
Shipping Solvent: water

P/N
Description
Particle size
Housing material ID (mm) Length (cm)
0008022
TSKgel G4000PWXL
10 µm
Stainless Steel 7.8 30
0008033
Guard Column for P/N 0008022
12 µm
Stainless Steel 6 4
0008035
TSKgel Top-Off for PWXL, 1g
10 µm
Base Material: hydroxylated polymethacylate
Particle Size (mean): 10 µm
Pore size (mean): 100 nm
Calibration Range (polyethylene glycols and oxides):   4,000 - 800,000 Da
Max. % Organic: 20%
Shipping Solvent: water

P/N
Description
Particle size
Housing material ID (mm) Length (cm)
0008023
TSKgel G5000PWXL
10 µm
Stainless Steel 7.8 30
0008033
Guard Column for P/N 0008023
12 µm
Stainless Steel 6 4
0008035
TSKgel Top-Off for PWXL, 1g
10 µm
Base Material: hydroxylated polymethacylate
Particle Size (mean): 13 µm
Pore size (mean): > 100 nm
Calibration Range (polyethylene glycols and oxides):   40,000 - 8,000,000 Da
Max. % Organic: 20 %
Shipping Solvent: water

P/N
Description
Particlesize
Housingmaterial ID(mm) Length(cm)
0008024
TSKgel G6000PWXL 13 µm Stainless Steel 7.8 30
0008033
Guard Column for P/N 0008024 12 µm Stainless Steel 6 4
0008035
TSKgel Top-Off for PWXL, 1g 10 µm


Base Material: hydroxylated polymethacylate
Particle Size (mean): 10 µm
Pore size (mean): > 100 nm
Working Range:  500 - 5,000 bp DNA
Calibration Range (polyethylene glycols and oxides):   40,000 - 8,000,000 Da
Max. % Organic: 20%
Shipping Solvent: water

P/N
Description
Particle size
Housing material ID (mm) Length (cm)
0008032
TSKgel G-DNA-PW
10 µm
Stainless Steel 7.8 30
0008033
Guard Column for P/N 0008032
12 µm
Stainless Steel 6 4
0008035
TSKgel Top-Off for P/N 0008032, 1g
10 µm
Base Material: hydroxylated polymethacylate
Particle Size (mean): 13 µm
Pore size (mean): 10 - 100 nm
Calibration Range (polyethylene glycols and oxides):   1,000 - 8,000,000 Da
Max. % Organic: 20%
Shipping Solvent: water

P/N
Description
Particle size
Housing material ID (mm) Length (cm)
0008025
TSKgel GMPWXL
13 µm
Stainless Steel 7.8 30
0008033
Guard Column for P/N 0008025
12 µm
Stainless Steel 6 4
0008035
TSKgel Top-Off for P/N 0008025, 1g
10 µm
Base Material: hydroxylated polymethacylate
Particle Size (mean): 7 µm
Pore size (mean): 12.5 nm
Calibration Range (polyethylene glycols and oxides):   up to 3,000 Da
Max. % Organic: 20%
Shipping Solvent: water

P/N
Description
Particle size
Housing material ID (mm) Length (cm)
0008031
TSKgel G-Oligo-PW
7 µm
Stainless Steel 7.8 30
0008034
Guard Column for P/N 0008031
13 µm
Stainless Steel 6 4
0008035
TSKgel Top-Off for P/N 0008031, 1g
10 µm
